• Body, standard
• Rear wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle
• Door, swing-out passenger-side, 60/40 split
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

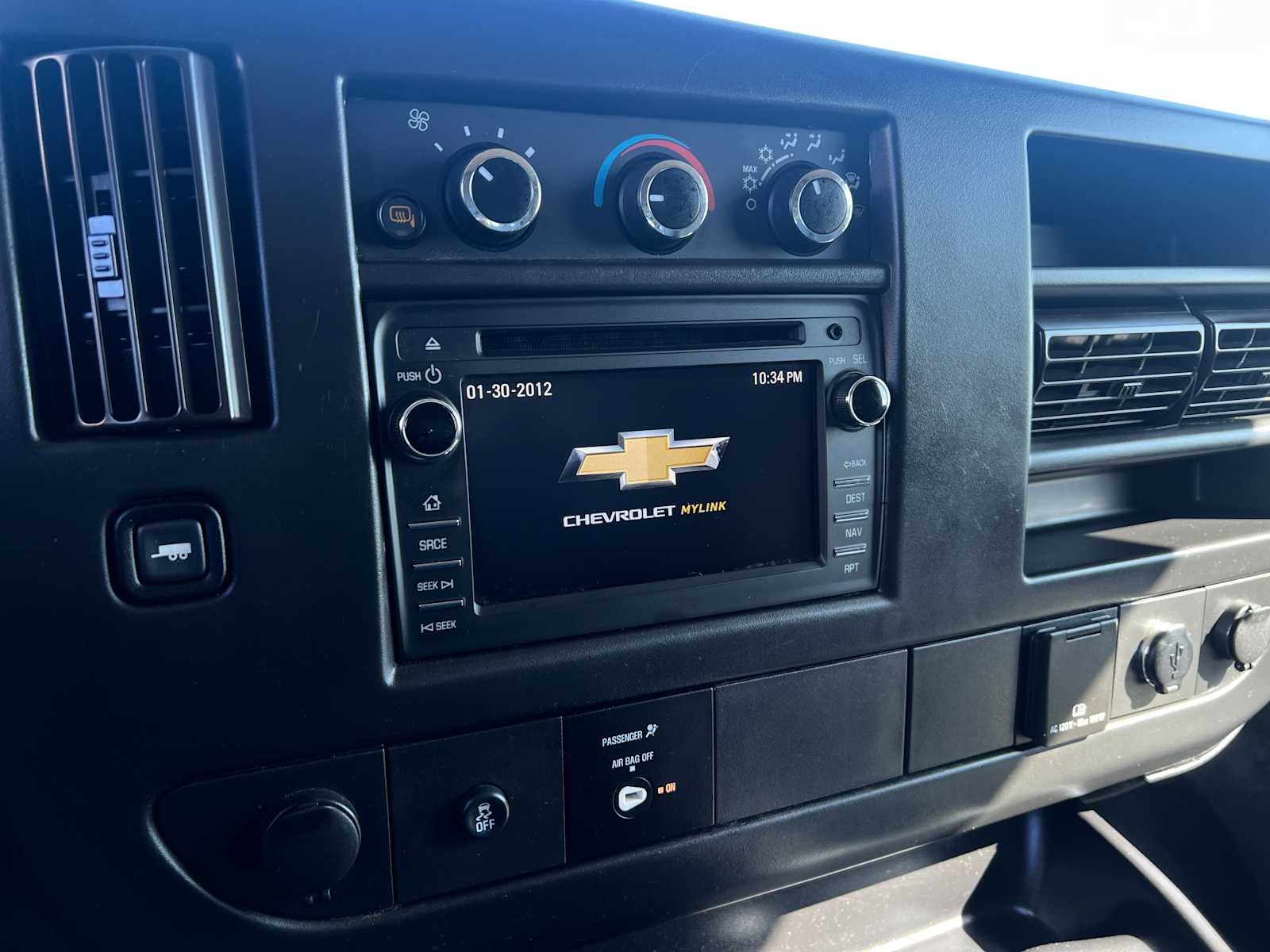

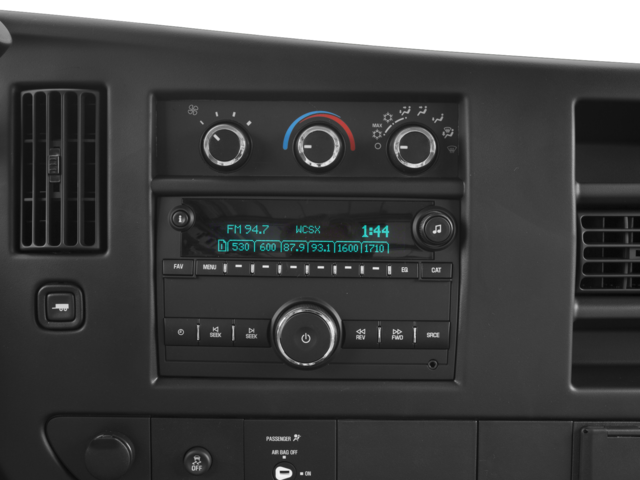

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Satellite Radio or (5BV) Upfitter electrical provisions.)

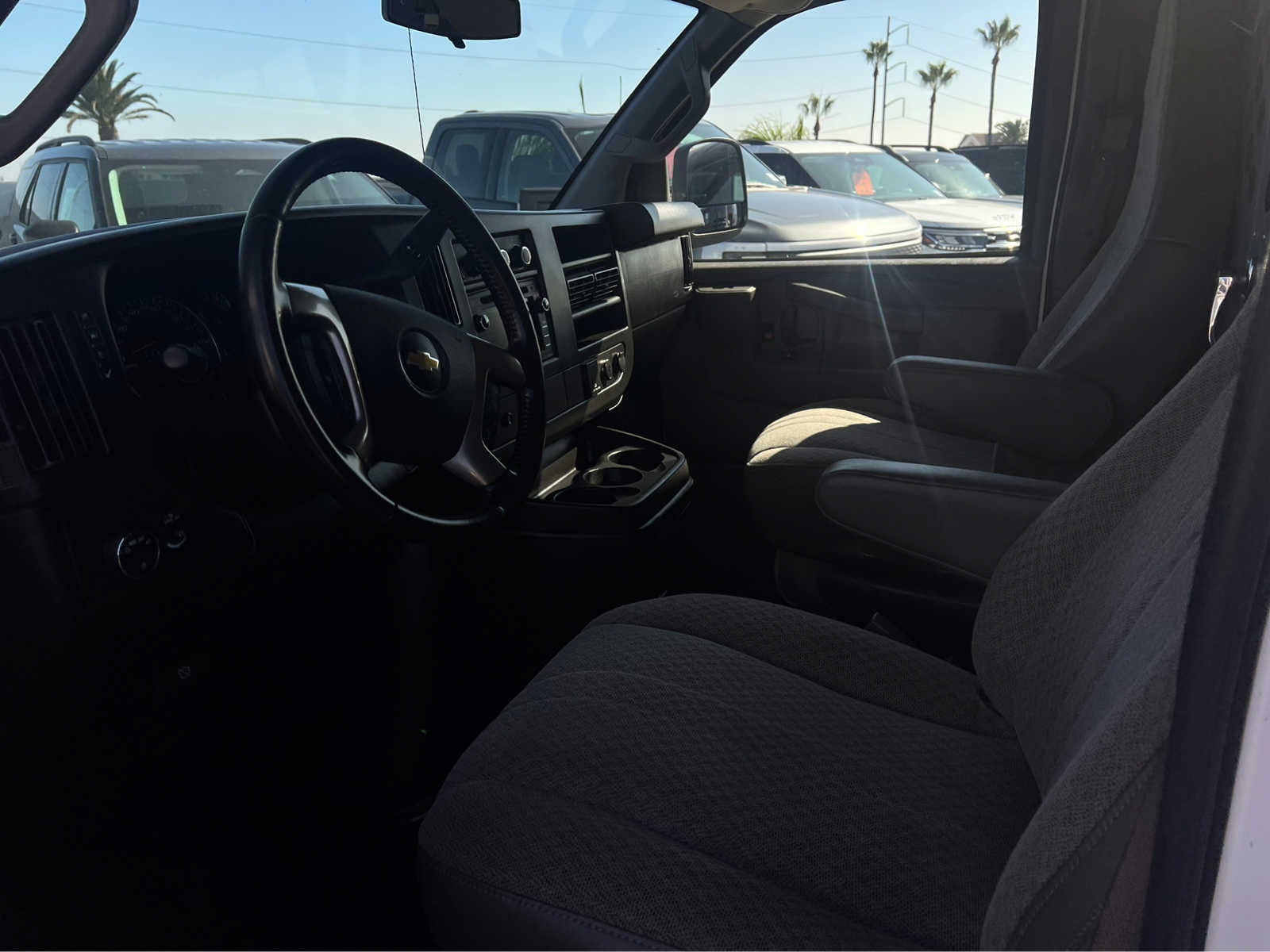

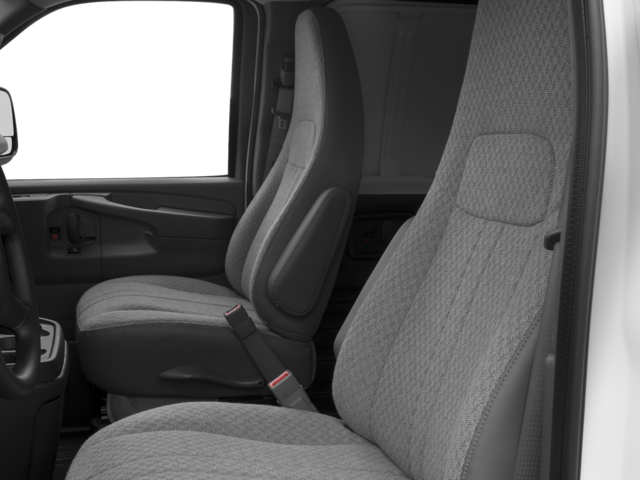

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim. Includes (DAA) driver and front passenger vinyl visors.)
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (RFM) rear floor covering delete, (5BV) Upfitter electrical or (PCH) Hotel Shuttle Package.)

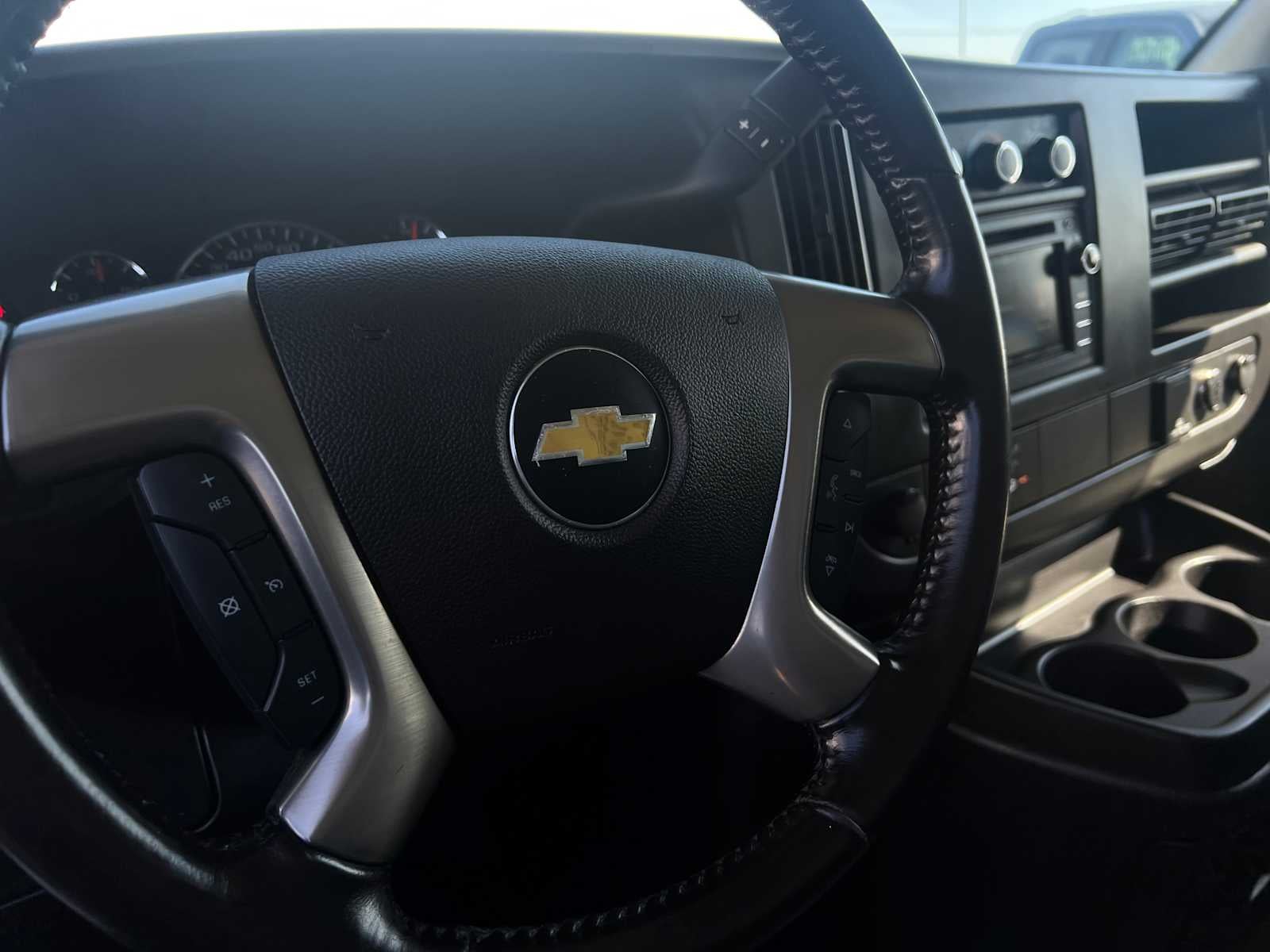

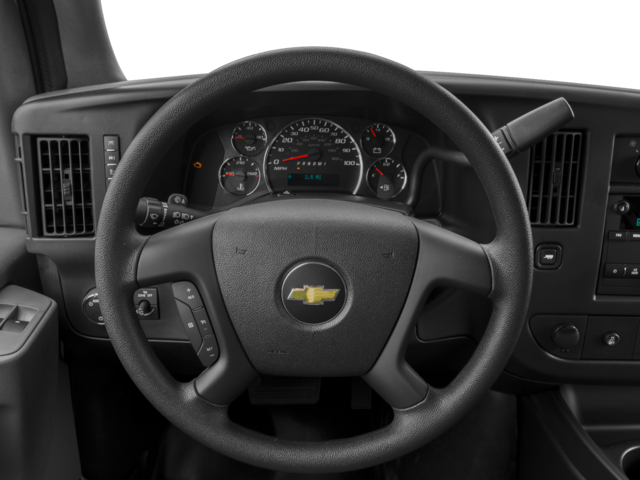

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Door locks, power with lock-out protection (Included with (ZQ2) convenience Package. NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Windows, power (Included with (ZQ2) Convenience Package.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Power outlet, 120-volt
• Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package.)
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
• Cargo tie-downs 6 D-ring attachments on cargo area floor (Not available with (Y3H) Paratransit Package, (5BV) Upfitter electrical provisions, (5L3) interior trim panel or (ZP6) 5-passenger Express Crew Van.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch. Included with (ZX2) driver and front passenger high-back bucket seats or (ZP6) 5-passenger Express Crew Van Package. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, driver and right-front passenger, seat-mounted side-impact and head curtain side-impact (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

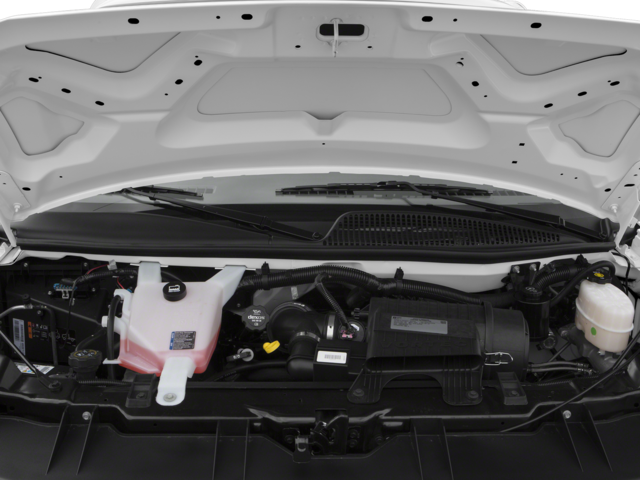

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.

• ATG
• DE5
• L20
• MYD
• UD7
• UI8
• UVC
• W1Y
• ZQ3

• Vehicle

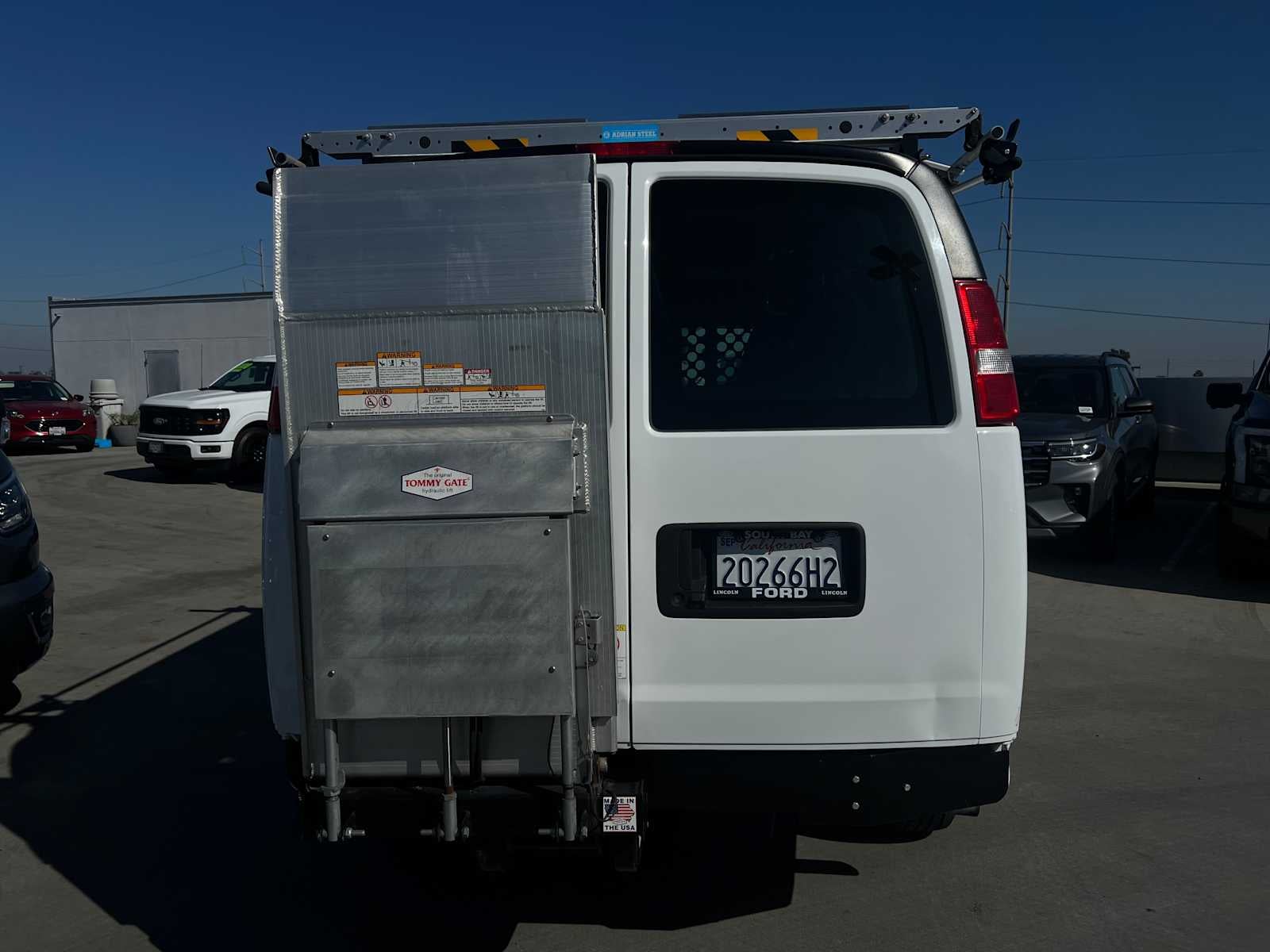

• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 2975
• Curb Weight - Rear (lbs): 2356
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 14600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 890
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 84.60
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.30
• Step Up Height - Side (in): 20.80
• Cargo Area Dimensions

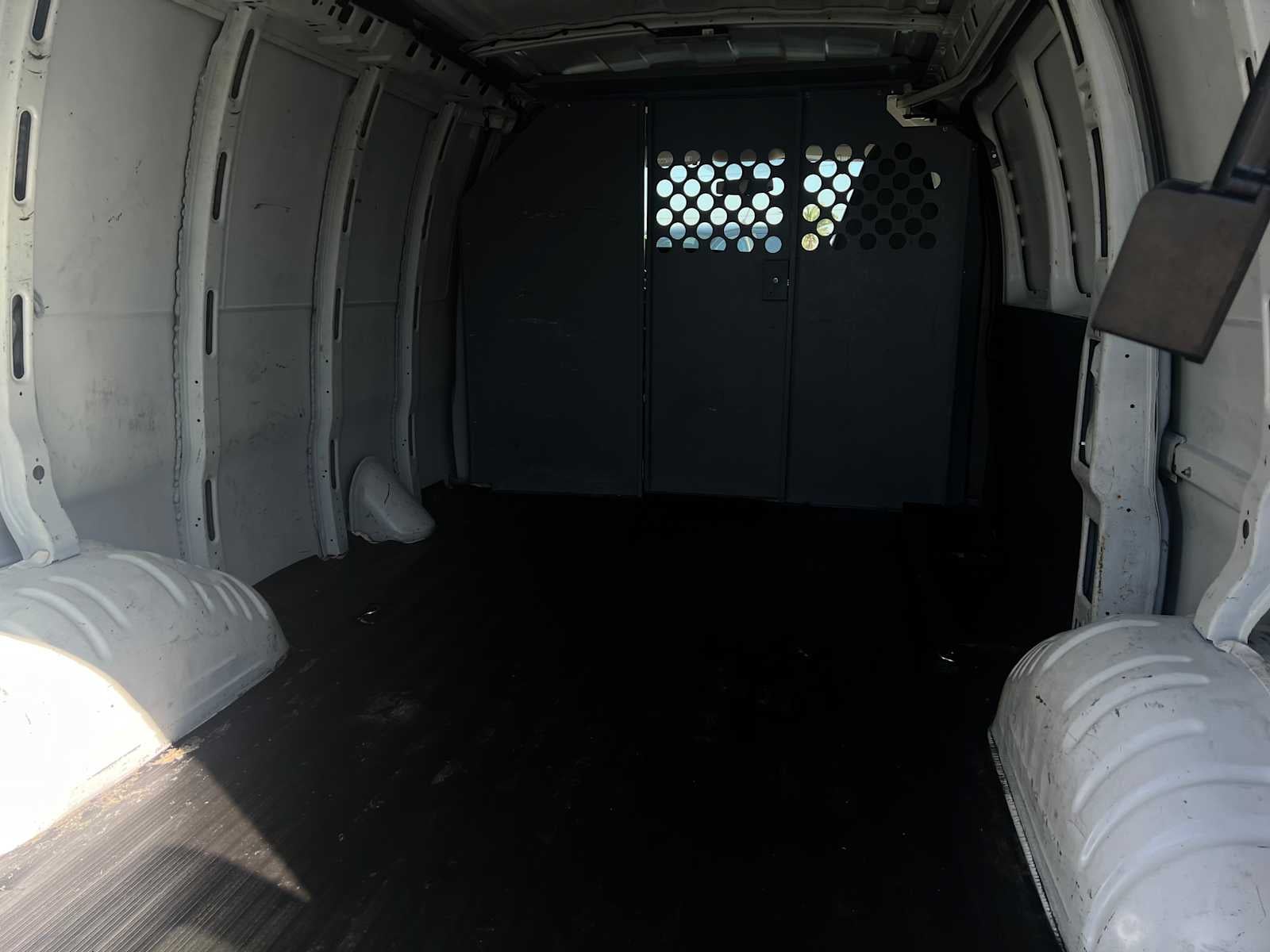

• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 124.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 52.90
• Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary

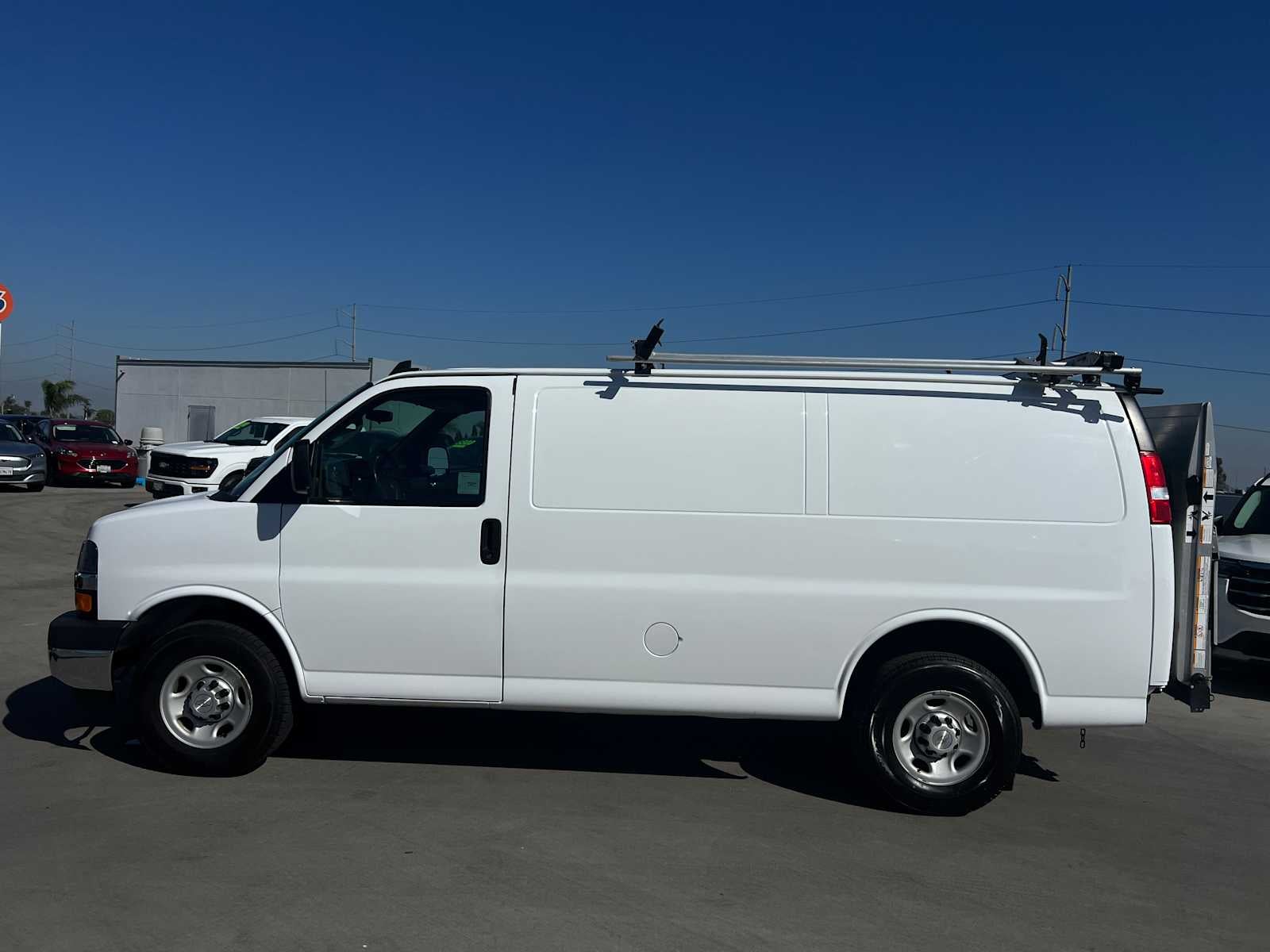

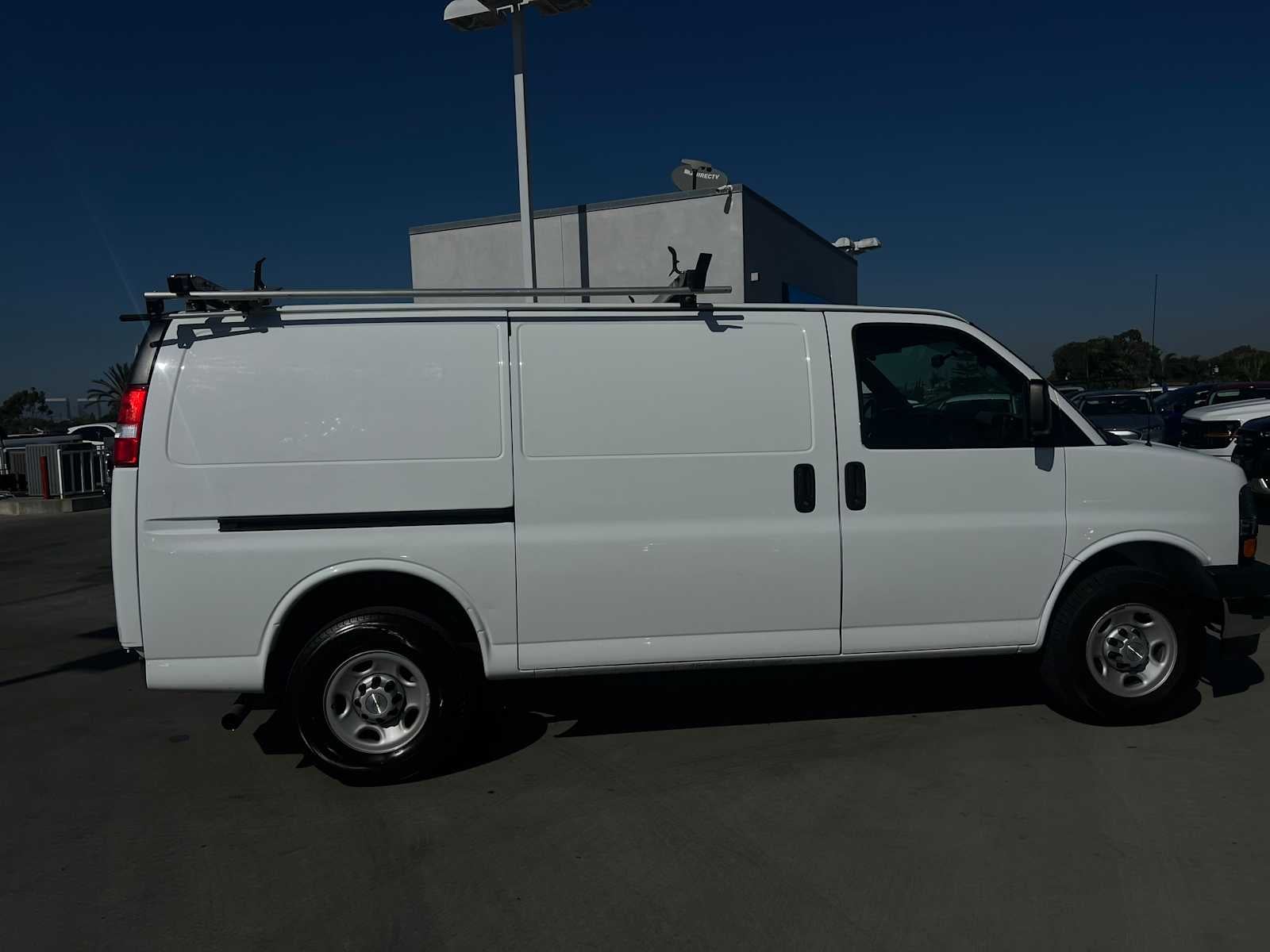

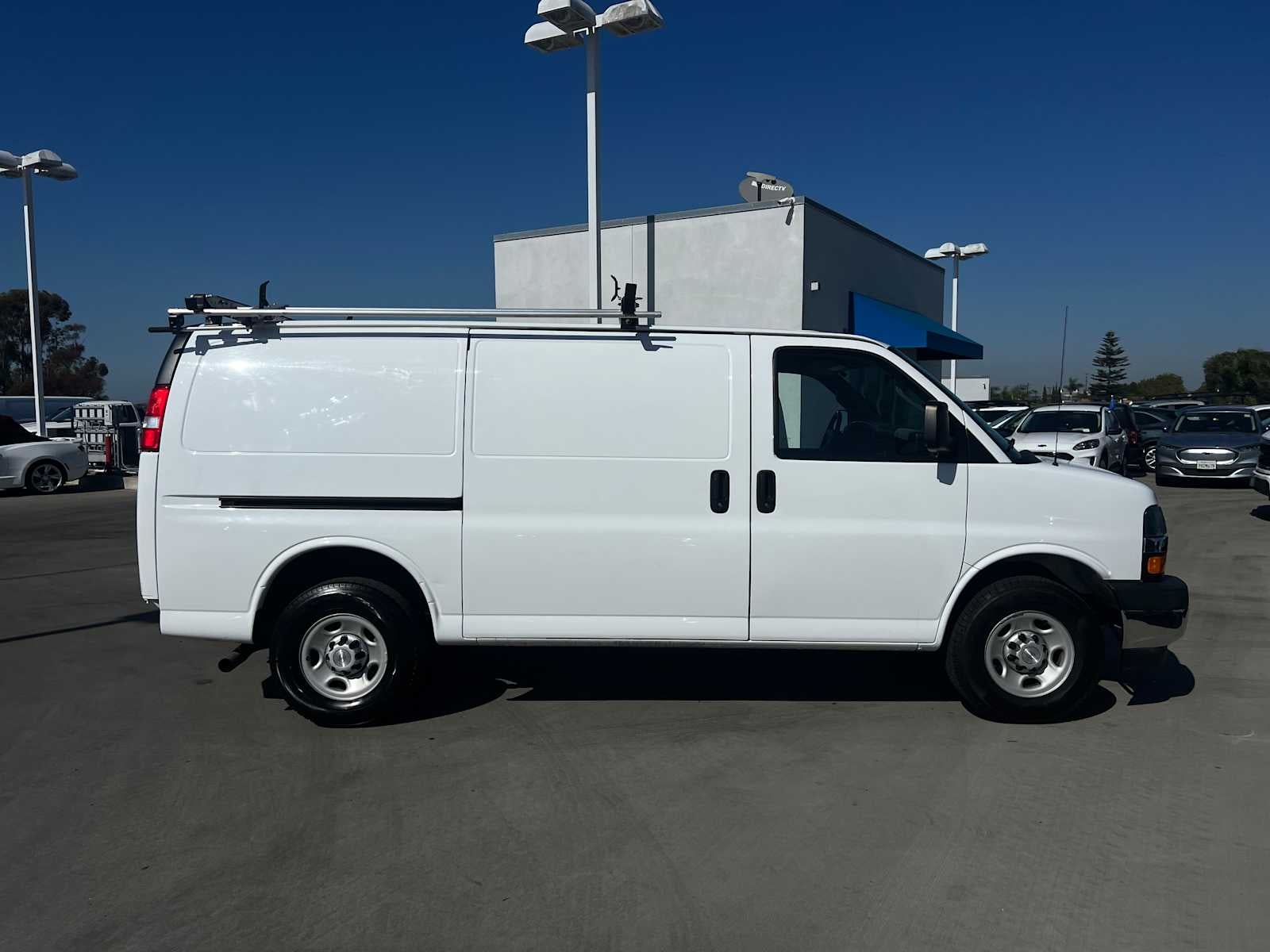

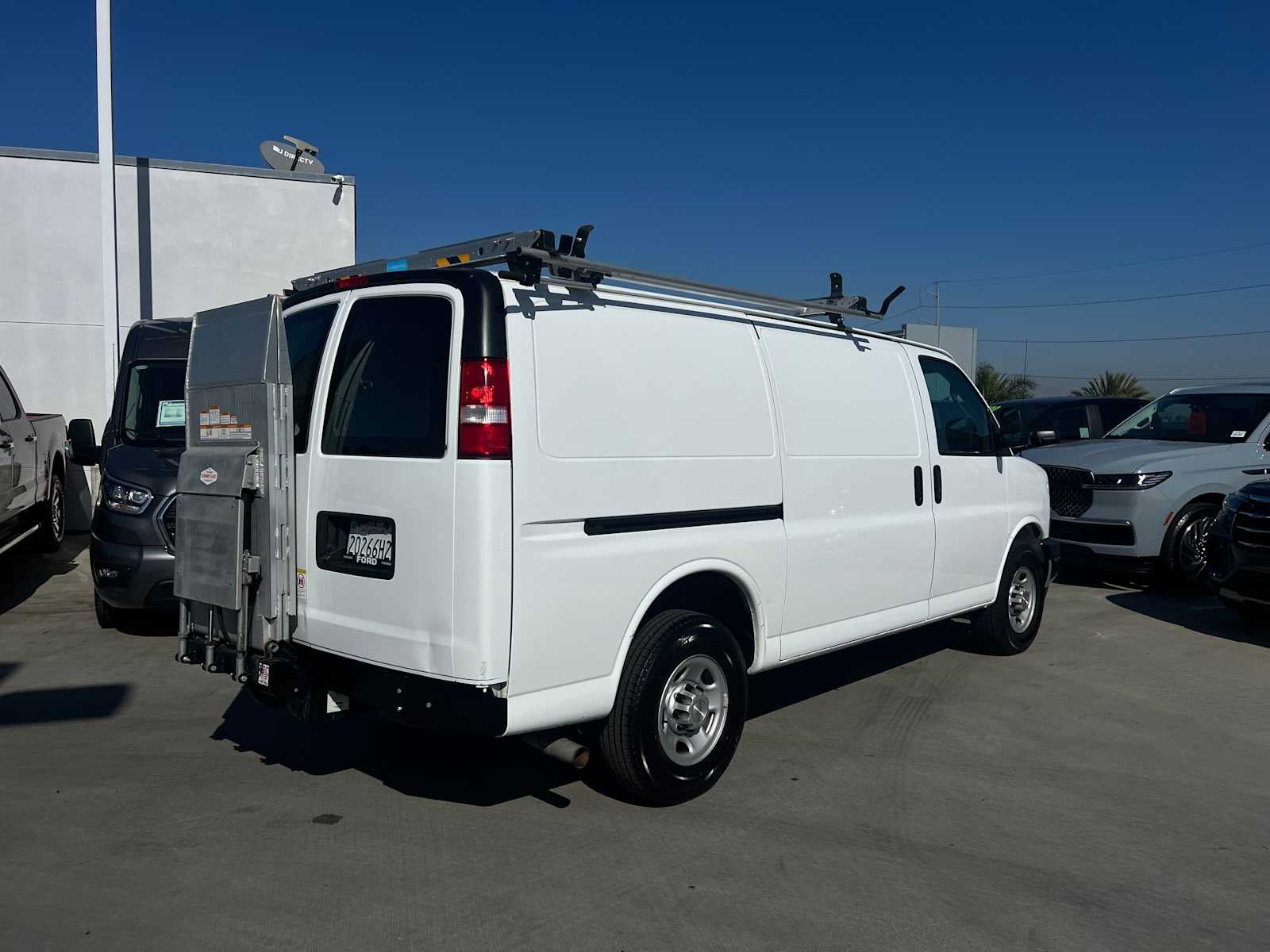

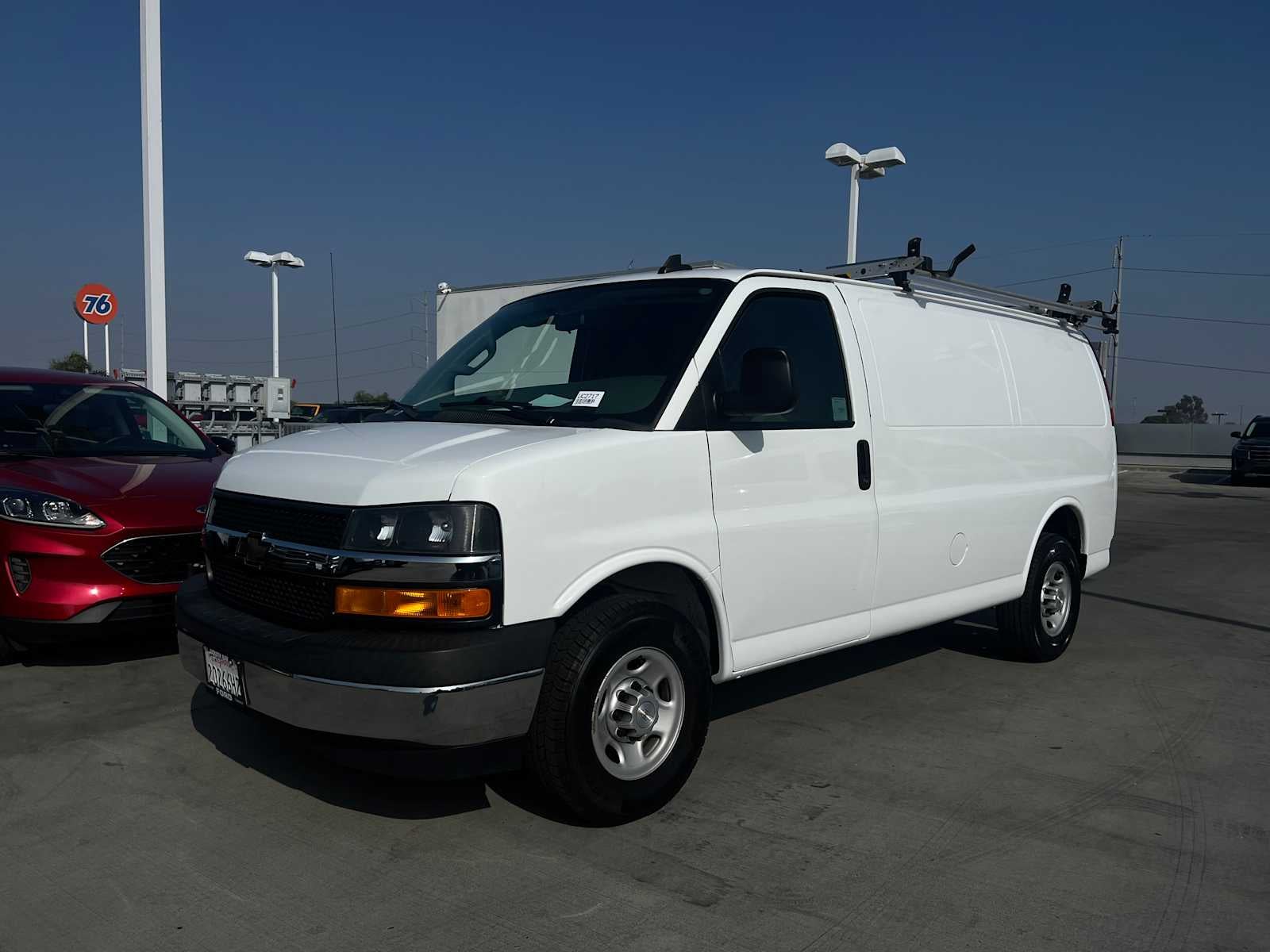

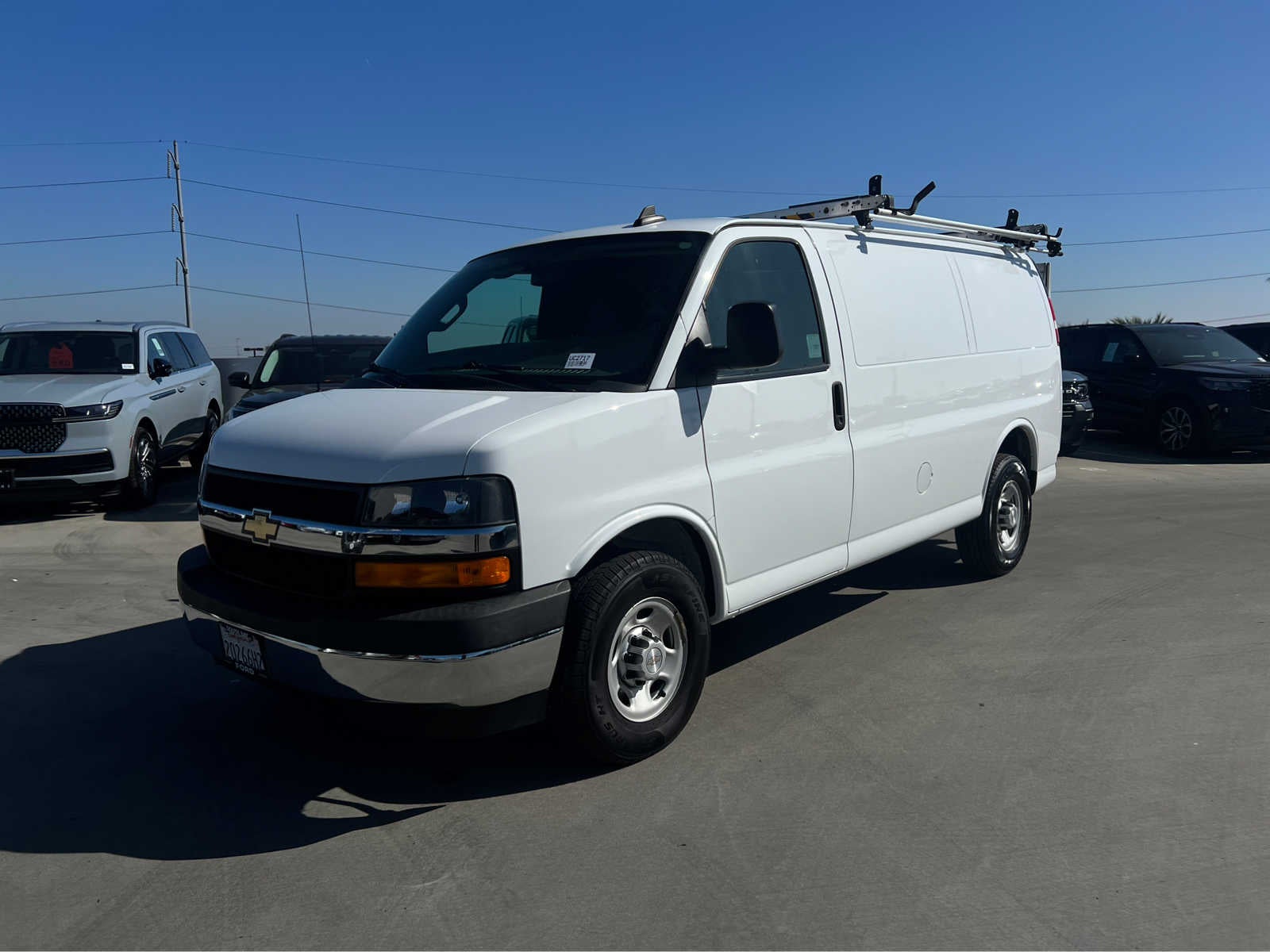

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
